Airbus Desktop Panel - Digital Plans

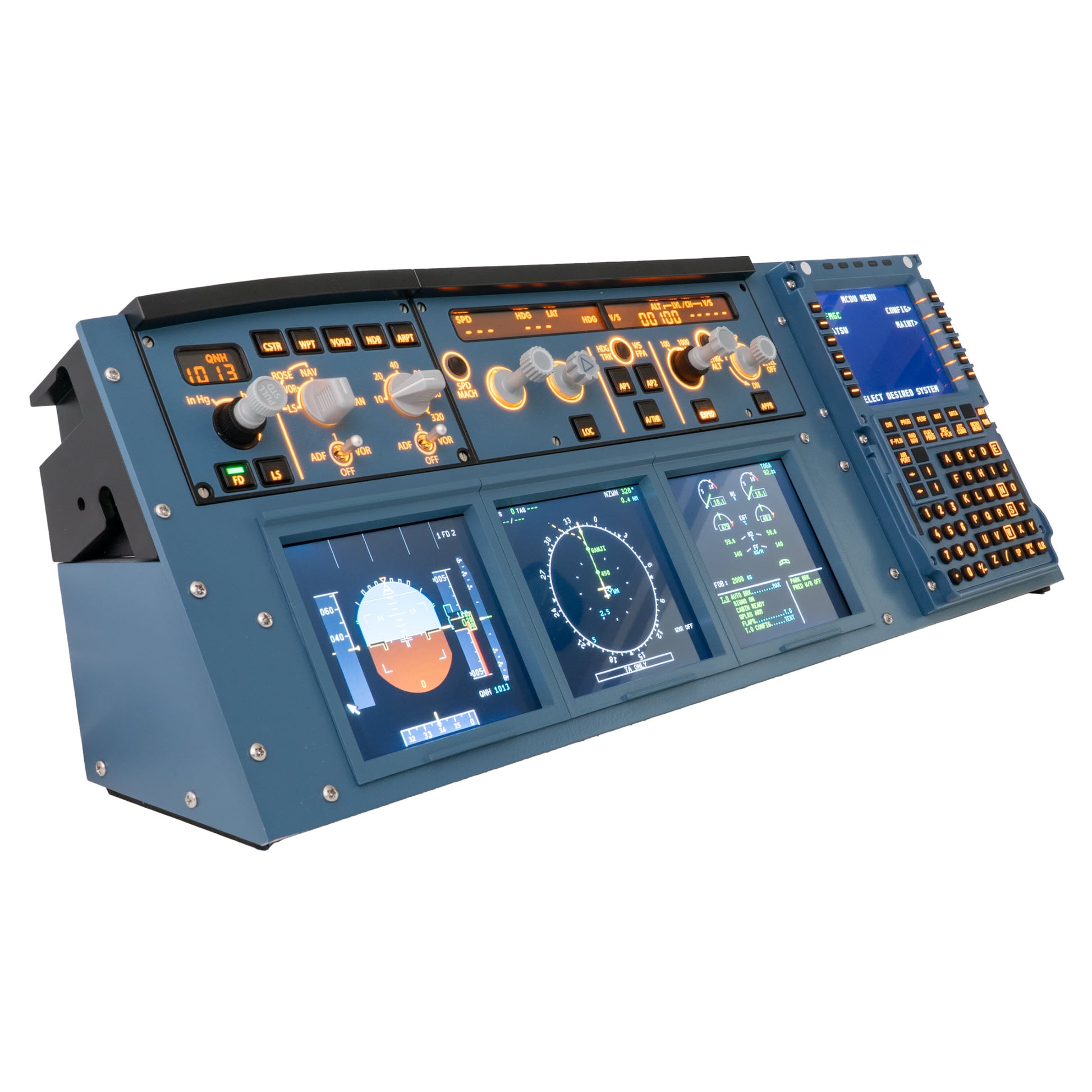

The Airbus Desktop Panel delivers outstanding cockpit immersion, featuring a high-resolution display for the Airbus PFD, ND, and ECAM screens, along with secure mounting for key Winwing/Winctrl Airbus components including the MCDU, FCU, and EFIS.

Features:

• 2.5K high-resolution screen for displaying the Airbus PFD, ND, and ECAM screens—or any simulator displays of your choice

• Sturdy mounting system for Winctrl MCDU, FCU, and EFIS units, secured with high-quality fittings

• Sleek, professional finish color-matched to Winctrl components

• Compact desktop design fits neatly beneath your main monitor

What's included:

The digital plans include the following:

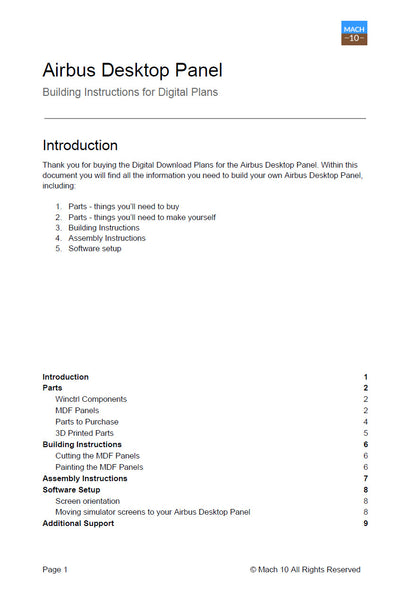

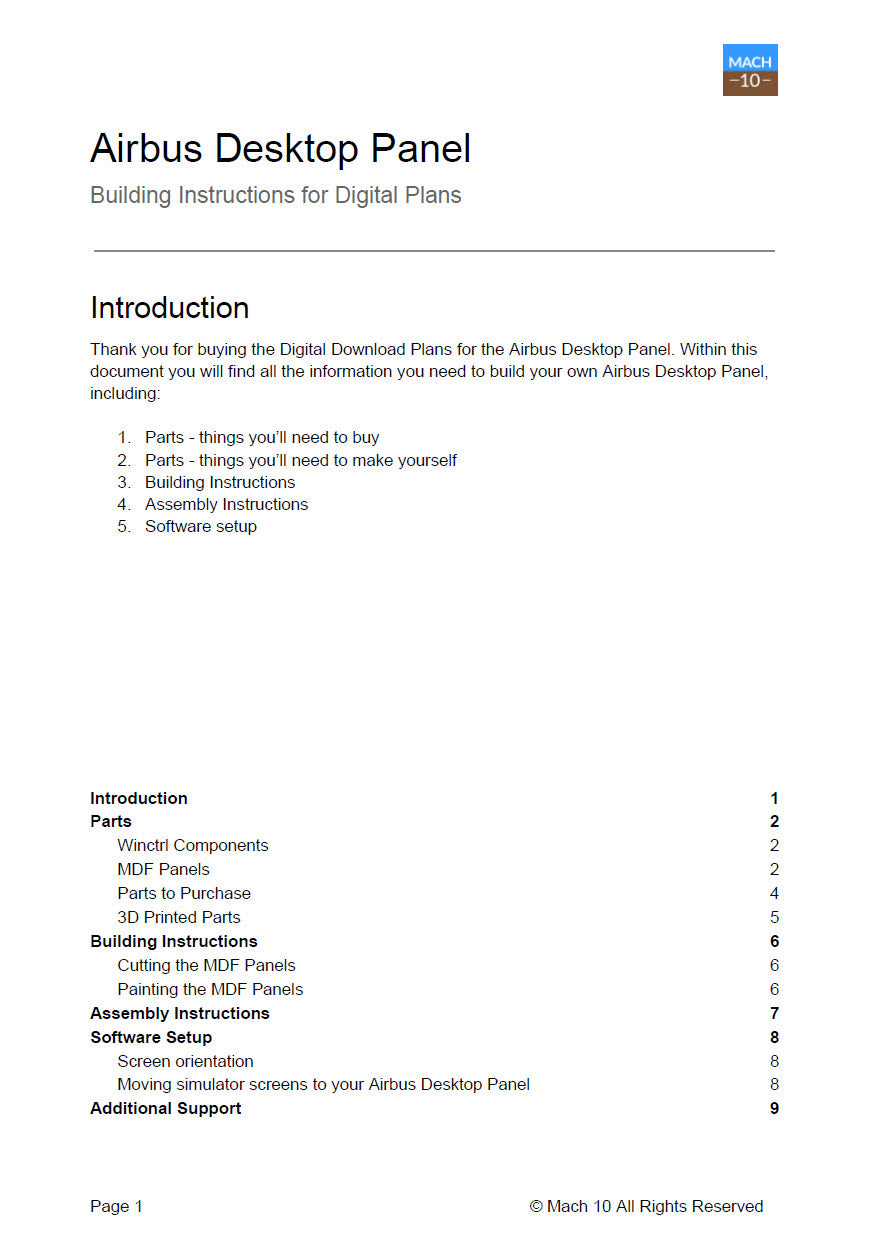

1. Build and Assembly Instructions in PDF format

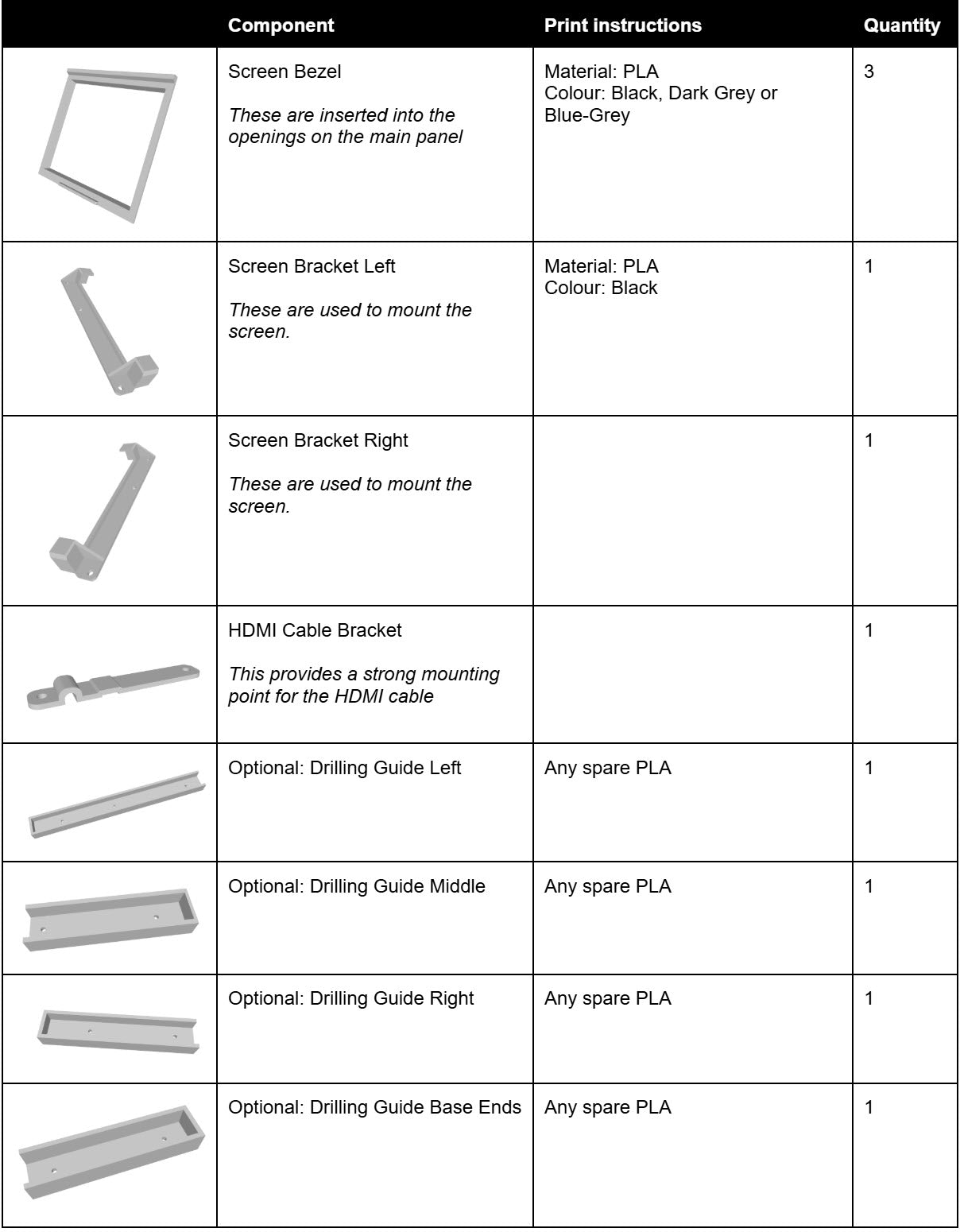

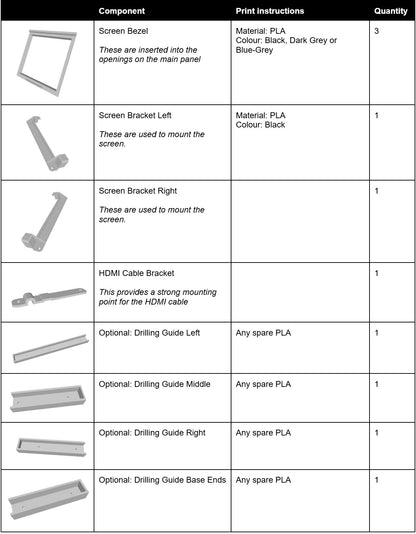

2. 3D files in STL format for 3D printing

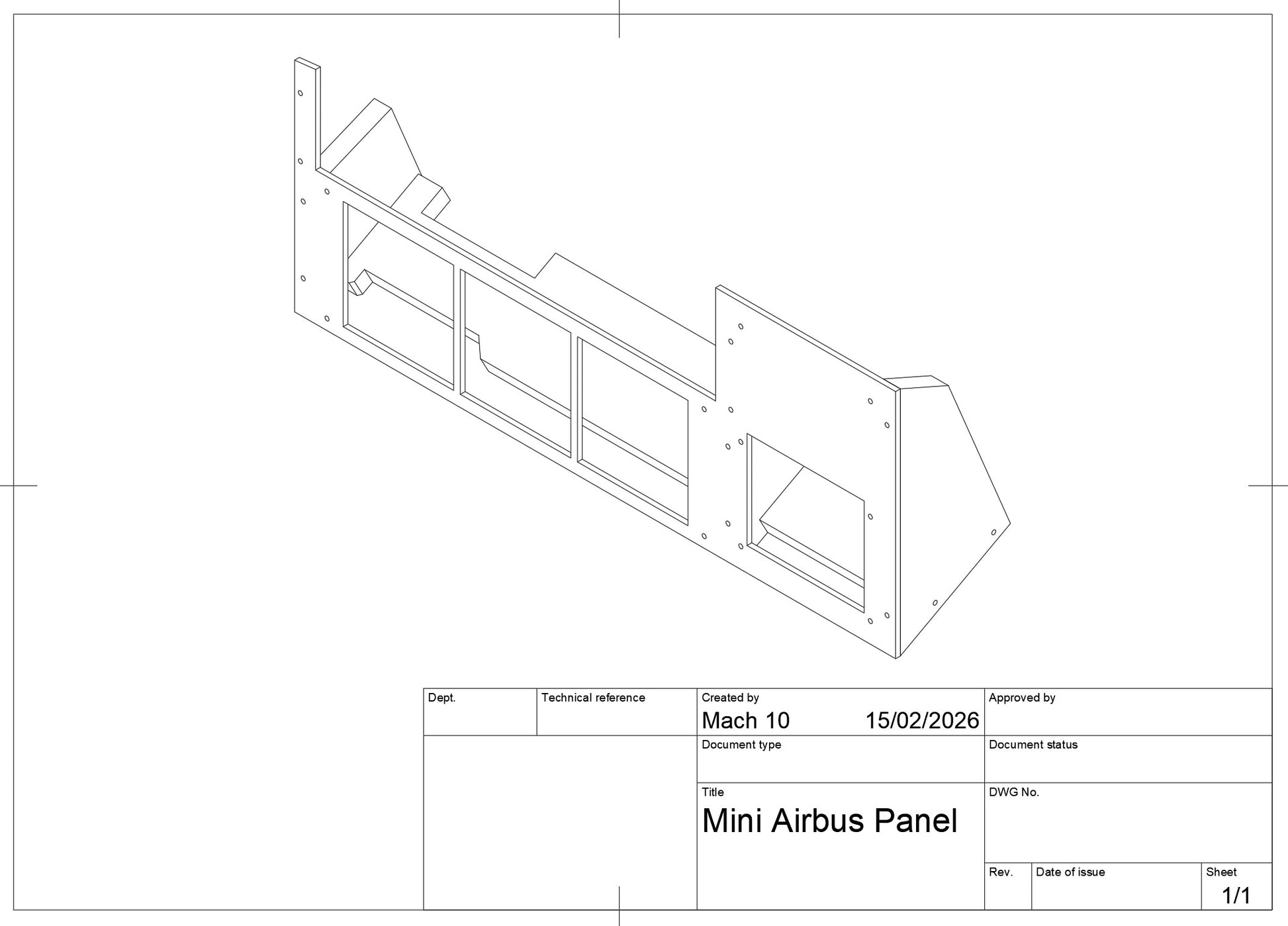

3. PDF plans including all measurements (to cut your own MDF parts)
4. CNC cutting files in DWG format (to cut MDF parts with a CNC machine)

5. Purchase links for components
6. Access to support to help assist with any questions

Additional components to purchase:

You will need to purchase the following extra components (full details and purchase links are included with the digital download plans).

• 2.5K high-resolution screen for displaying the Airbus PFD, ND, and ECAM screens
• Mini-HDMI to HDMI adapter
• USB-C Power Cable with 90 degree
• Screws, bolts and nuts - various sizes

The approximate cost of these extra components is USD$160-180.

Notes:

• You will also need access to a 3D printer, as well as various tools, paint, etc, to cut out the MDF panels and to complete the build.
• Winctrl components must be purchased separately

• An HDMI port on your PC is required for the unit. If you don’t have a spare HDMI port, you can use a USB-to-HDMI adapter

• Monitor compatibility: the height of the unit is 200mm. To ensure the screen of your main monitor is not obstructed, the distance from the bottom of the viewable part of the screen to the desk must be at least 200mm or more. Or simply raise your monitor as required.

Specifications:

• Dimensions: 630mm wide x 243mm height x 100mm depth
• Product weight when completed: 1.2kg
• Material: MDF and PLA
